Powerful Performance

With the powerful Intel® Alder Lake i3-N305, N100 or N97 processor, our embedded single board computer boasts an impressive 8 cores and 8 threads, with a maximum turbo frequency of 3.08GHz and 6MB of Intel® smart Cache. This means that it delivers exceptional computing performance, making it the perfect choice for complex automation tasks, edge computing, and robotics. No matter what your needs are, this SBC computer can handle it all with ease.

Compact Form Factor

Small 3.5-inch disk size form factor allows for easy integration into space-constrained environments. Its compact design makes it suitable for applications where size and space efficiency are essential, such as embedded systems, industrial machinery, and robotics.

IoT Solutions

Industrial

Transportation

Medical

Seamless Connectivity

3.5”single board computer offers an extensive set of input/output interfaces, including multiple COM ports, USB ports, GPIO, and audio interfaces. Effortlessly connect to peripherals, sensors, and external devices to create a comprehensive industrial system.

Product description

The Maxtang SBC ALN-35 is a powerful and energy-efficient embedded motherboard designed for industrial applications. Equipped with an Intel Alder Lake N series processor and supports up to 32GB of single-channel SO-DIMM DDR4 memory, providing enhanced performance and productivity. The board offers a range of display options, including HDMI, DP plus eDP/LVDS, and features two Intel Ethernet controllers, mSATA and SATA for storage.

Intel® single board computer is a versatile solution for a variety of applications. Moreover, the SBC-ALN35 provides a comprehensive input/output interface, including 6xCOM, 4xUSB3.2, 4xUSB2.0, GPIO, and CTIA audio port, making it easy to connect to a wide range of peripherals. It is designed for stability and reliability to withstand harsh industrial environments. As a member of the Intel IoT Solutions Alliance, Maxtang is committed to delivering high-quality products at a competitive price to meet the needs of its customers. Value Props

Features

CPU: Intel® Alder Lake-N Processor
Memory: Single Channel SO-DIMM DDR4 up to 32GB
Display: Integrated Graphics display via HDMI® +DP+eDP/LVDs
Ethernet: 10/100/1000Mbps (intel i210)
Storage: mSATA, SATA3.0
Expansion: 1xM.2 for Wi-Fi
Power: 12V-35V Phoenix input(2Pin)

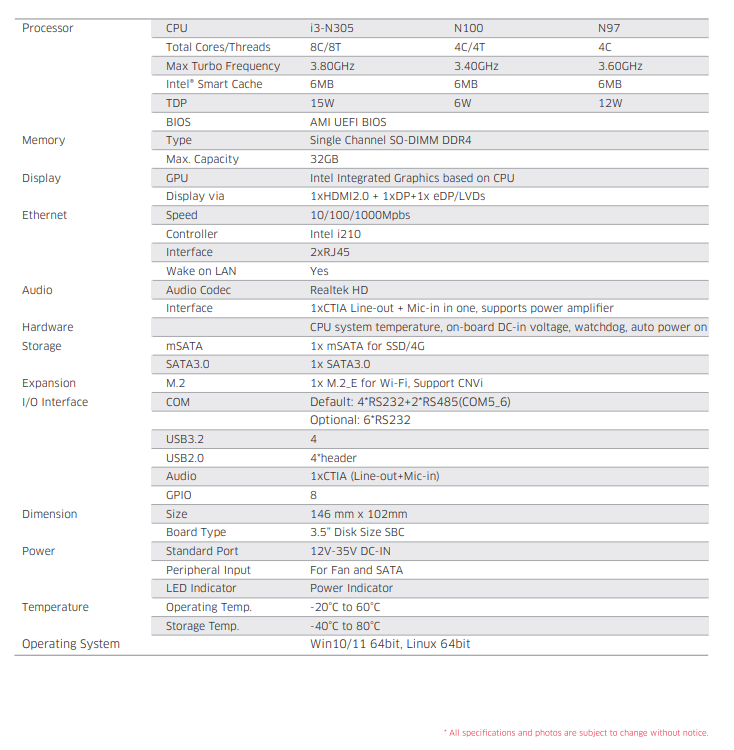

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

Datasheet_ALN-35

User Manual_ALN-35

Drivers Audio_Realtek_ALC897

Drivers LAN_Intel_1.0GbE

Drivers Intel Alder Lake-N Series
