High-Performance Processing

Featuring Intel® Alder Lake-U/Raptor Lake-U processors with multiple core/thread configurations and turbo frequencies up to 4.70GHz, the Maxtang digital signage computer ensures powerful and efficient performance for demanding applications

Digital Signage Mini PC

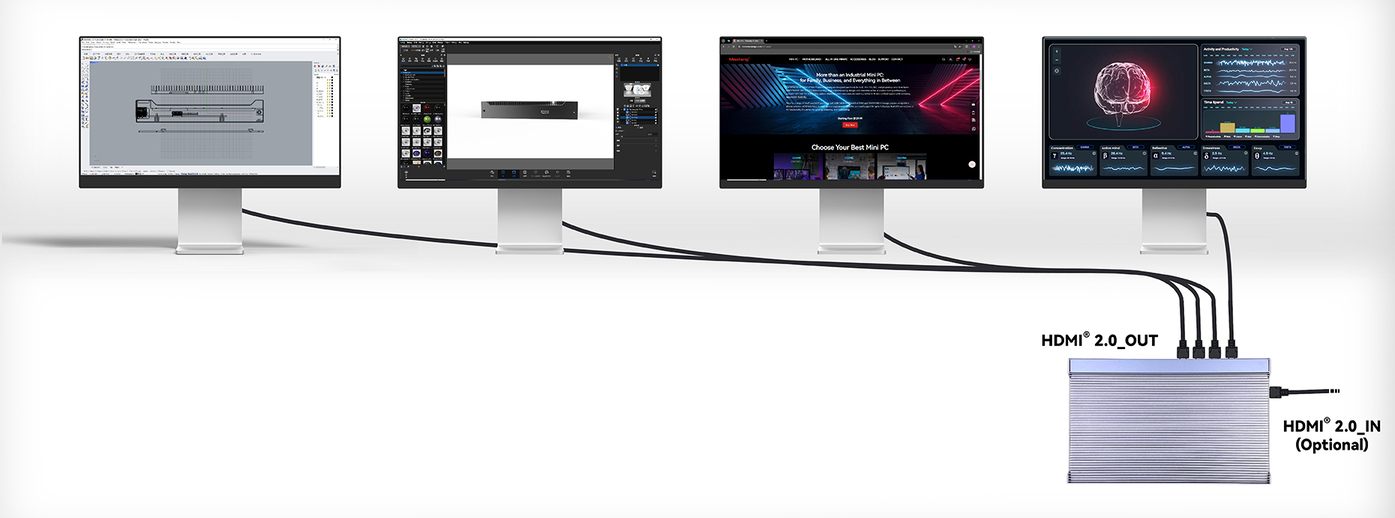

SXRL-20 supports 4 screen displays simultaneously.
The advanced passive cooling design eliminates noise, ensuring silent operation
and reducing maintenance needs, making it ideal for noise-sensitive environments.
The Maxtang SX series is engineered to perform reliably in extreme conditions,
with an operating temperature range from -20°C to 60°C and a storage temperature
range from -40°C to 80°C, ensuring dependable performance in various challenging settings.
The standard 19V DC-IN power port and the optional Phoenix 2PIN
offer flexible power solutions to accommodate diverse installation requirements.

Enhanced Connectivity

Equipped with an extensive I/O interface. Featuring two lightning-fast LAN ports supporting speeds up to 2.5Gbps, alongside two USB 3.2 ports, one USB 2.0 port, a versatile USB-C port, and a COM port (RS232 RJ45 console), this series ensures robust connectivity for a diverse range of peripherals and devices. With support for up to 64GB of dual-channel SODIMM DDR4 memory and multiple M.2 slots for NVMe/SATA SSDs, users can effortlessly expand memory and storage to tailor to their specific requirements.

2xLAN ports, up to 2.5Gbps.

Integrated Intel® UHD Graphics

Product description

The Maxtang SXRL-20 fanless embedded mini-PC redefines computing power and versatility for digital signage and multitasking environments. Powered by the Intel® Alder Lake-U/Raptor Lake-U processor, it offers exceptional performance and efficiency. With support for up to 64GB dual-channel SO-DIMM DDR4 memory, expandable storage options, and extensive connectivity including four HDMI 2.0 outputs and one HDMI® 2.0 input, it's designed to meet diverse application needs easily.

Its compact form factor, all-aluminum metal chassis, and mounting compatibility make it ideal for space-saving deployments in retail, hospitality, education, healthcare, and industrial settings. The advanced passive cooling design ensures silent operation, enhancing user experience and reliability for long-term usage. The Maxtang SX series sets a new standard for fanless mini-PCs, delivering superior performance, connectivity, and durability for seamless integration into various environments.

Features

CPU: Intel® Alder Lake/Raptor Lake-U Processor
Memory: Dual Channel SO-DIMM DDR4 up to 64GB
Display: Integrated Intel® UHD/Iris® Xe Graphics
Ethernet: 10/100/1000/2500Mbps
Storage: M.2 for NVMe/SATA SSD,M.2 for NVMe SSD
I/O Ports: 2xLAN, 1xCOM, 2xUSB3.2, 1xUSB2.0, 1xUSB-C,
SIM, 4xHDMI_OUT, 1xHDMI_IN, Wired Control
Power: 19V DC-in/Phoenix 2-pin Optional

Technical Parameters

*Product has High-Definition Multimedia Interface. All specifications are subject to change without notice.

*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

*All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate however, no responsibility is assumed for inaccuracies. All other trademarks or registered trademarks are the property of their respective owners and are recognized.

Downloads

SXRL-20 Datasheet20240709
